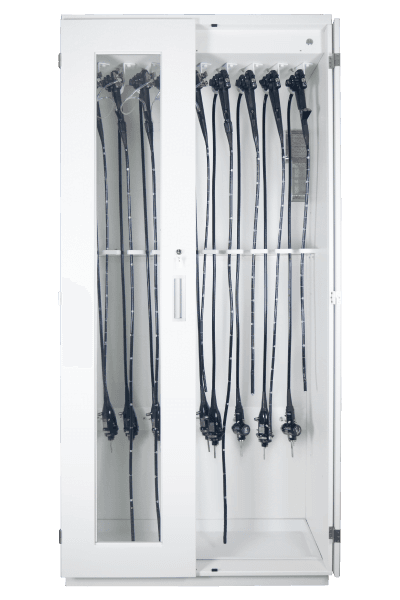

TruAir™ Endoscope Drying Cabinet

TruAir-Scope-Drying-Cabinet-SAS-4P-DRY-Closed

TruAir-Scope-Drying-Cabinet-SAS-9P-DRY-Open

TruAir-Scope-Cabinet-Stainless-Closed-18-Scopes

TruAir_Scope_Drying_Cabinet_Stainless_8_Scopes

TruAir™ Endoscope Drying Cabinet

HEPA FILTERED FORCED AIR CHANNEL DRYING CABINET

Effective storage of disinfected endoscopes plays a critical role in keeping patients safe. The superior design of TruAir™ Endoscope Drying Cabinets effectively lowers bacterial contamination of stored equipment and facilitates faster turnaround speeds by significantly reducing the time required to dry all internal and external surfaces. Our customizable scope drying cabinets feature TruHEPA-filtered air systems, which lessen the risk of contamination and ensure your facility remains compliant with ST91 guidelines.

The TruAir™ Scope Drying Cabinet is designed to keep endoscopes safe and dry while adhering to ST91 guidelines. The cabinet features a TruHEPA-filtered airflow system that creates a positive pressure barrier to reduce the risk of contamination.

The TruAir™ system simultaneously provides HEPA-filtered air to up to 18 flexible endoscope lumens, filtering particles as small as 0.3µm with a filtration rate of 99.97%. The cabinet is available in a range of sizes and storage capacities and offers a choice of locking systems for added security.

Video Overview

Click to Watch

More About This Item

Capacity for 4-18 flexible endoscopes
Available in two sizes
Self-contained TruHEPA-filtered air system
Filtration rate of 99.97% for up to 0.3µm
High flow rate channel drying with 6LPM per scope
45dB volume equivalent to light rain
Front rotating scope hooks for greater access
Air manifold with a quick disconnect
Padded lower back wall for distal tip protection
Removable drip tray for easy cleaning
Reusable drying connectors, including auxiliary water
Multiple finish options, including powder-coated metal and stainless steel
Keyed and keyless locking systems for added security
Hospital Air integration sold separately

Endoscopy Suite
Hospitals
Ambulatory Surgery Centers
OR Department

Model Numbers:

SAS-4P-DRY
SAS-8P-DRY
SAS-9P-DRY
SAS-18P-DRY

External Dimensions:

Half Width:
- 21.625″W x 18.75″D x 93.75″H (SAS-4P/8P-DRY)
Full Width:
- 40.875″W x 18.75″D x 93.75″H (SAS-9P/18P-DRY)

Available Finishes:

Bright White (Powder Coat)
Stainless Steel

Construction:

Powder Coated Metal
Stainless Steel
Locking Hinged Glass Doors

Air Supply:

Air Pump with HEPA Filter (Upper Manifold)
HEPA Filter Fan (Cabinet)

Air Flow Rate Filter Efficiency:

6 L/min per Scope (Minimum)

Air Pressure:

4 psi (Maximum)

Noise:

45 db

Linear Pump Filter Efficiency:

99.97% up to 0.3μm

Cabinet Filter Efficiency:

99.97% up to 0.3μm

Electrical Supply:

120 V Wall Plug-3A (10′ Cord Exiting Top Right of Cabinet)

Power Consumption:

128W

Rated Amperage:

4.1A

Capacity:

4-18 Flexible Endoscopes

Model Numbers:

SAS-4P-HA
SAS-8P-HA
SAS-9P-HA
SAS-18P-HA

External Dimensions:

Half Width:
- 21.625″W x 18.75″D x 93.75″H (SAS-4P/8P-HA)
Full Width:
- 40.875″W x 18.75″D x 93.75″H (SAS-9P/18P-HA)

Available Finishes:

Bright White (Powder Coat)
Stainless Steel

Construction:

Powder Coated Metal
Padded Lower Walls (Distal Tip Protection)

Air Supply:

Hospital Air Integration
HEPA Filter Fan (Cabinet)

Cabinet Filter Efficiency:

99.97% up to 0.3μm

Electrical Supply:

120 V Wall Plug-3A (10′ Cord Exiting Top Right of Cabinet)

Capacity:

4-18 Flexible Endoscopes

SAS-9P-DRY

SAS-18P-DRY

18 3⁄4”D X 40 7⁄8”W X 93 3⁄4”H

Provides HEPA-filtered, airflow directly into the cabinet itself and continuous positive air pressure through each endoscope lumen at 99.97% filtration up to 0.3µm.

Fully compliant with The Joint Commission, AORN, SGNA, and other standards and guidelines.

This MASS™ proprietary system achieves these standards at an unprecedented value, enabling most facilities to meet higher standards and provide their patients with the best in infection control for endoscope storage.

Resource: https://www.massmedicalstorage.com/product/9-18-endoscope-drying-cabinet/

Standard Accessories

Self-Contained Air System – SAS-DRY Only

Rotating Scope Hooks for 4-18 Flexible Endoscopes

4-18 Scope Connectors – Sold Separately

Air Manifold With a Quick Disconnect

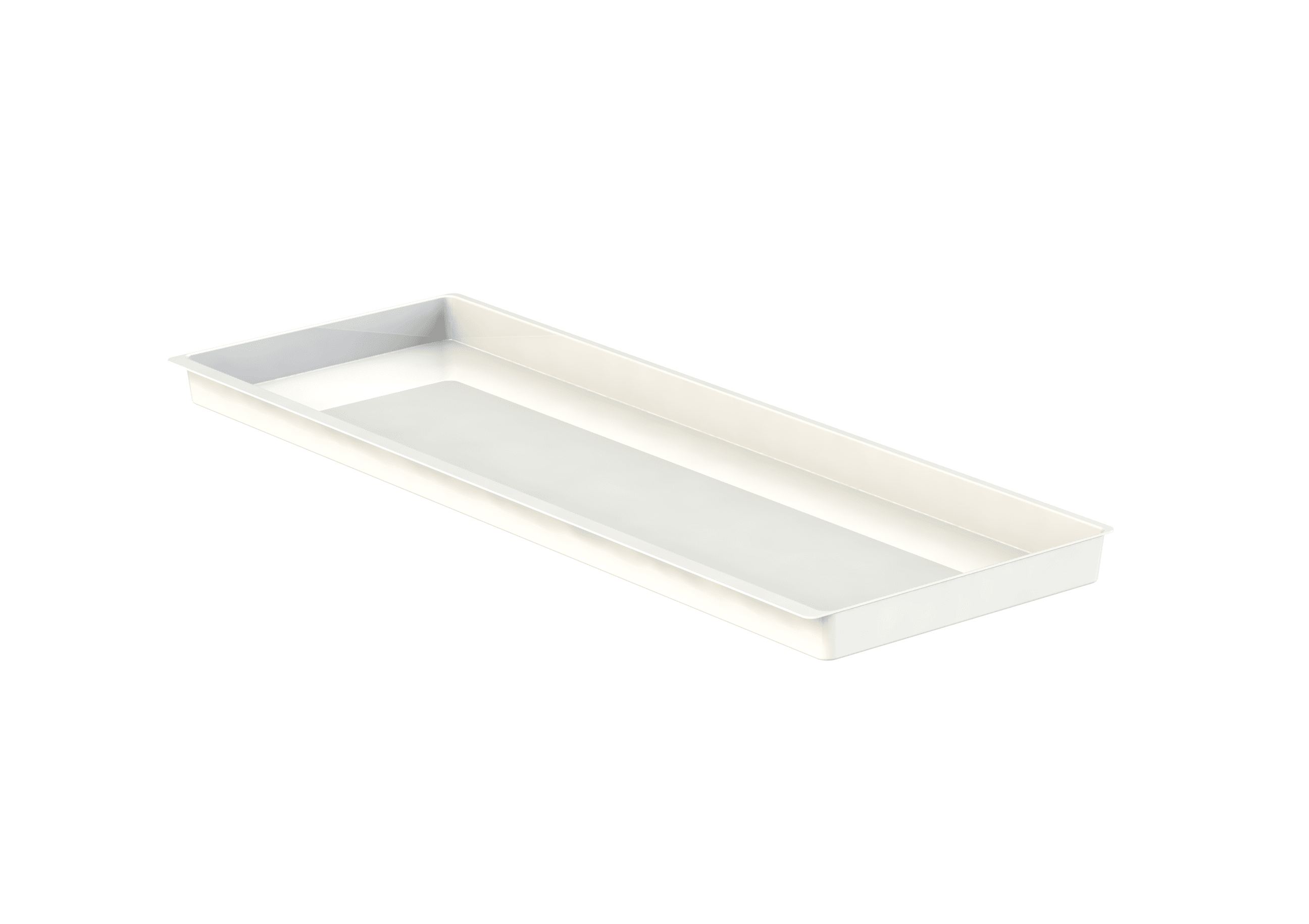

Removable Drip Tray

Center Separator Scope Rack

MASS_Medical_Storage_MU-truHEPAFILTER-no-background-2-e1700174044544

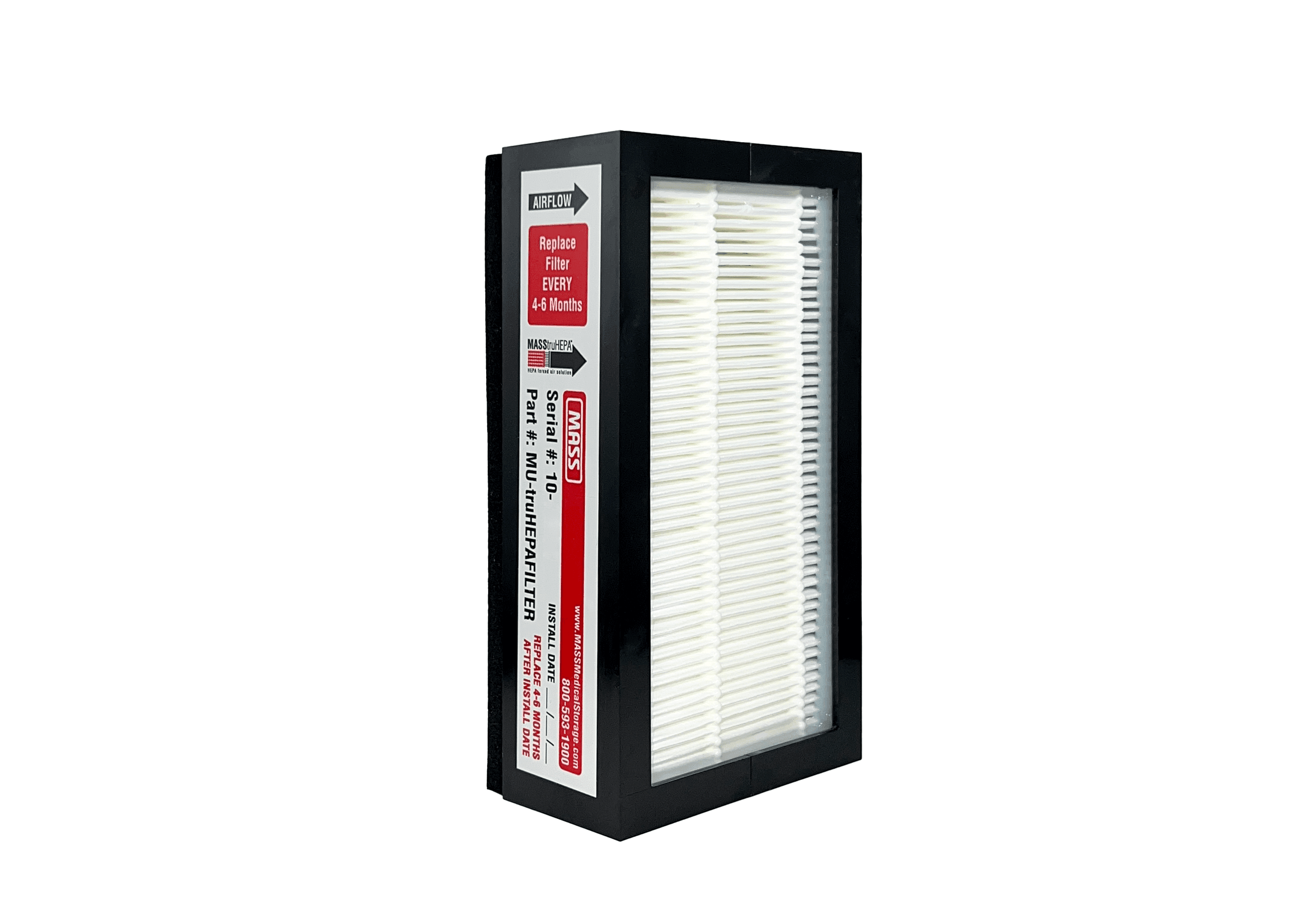

TruAir Filter

Keyed Locking

Slope Top

Padded Lower Back Wall For Distal Tip Protection

Optional Accessories

Temperature and Humidity Gauge

Keyless Lock

Door Activated LED Lighting

Locking Hinged Glass Doors – SAS-HA Only
